As a reputable supplier of Reclosing Drop Fuses, I am often asked about the installation steps for these essential devices on pole - mounted transformers. In this blog post, I'll walk you through the detailed installation process, ensuring that you can safely and effectively install a reclosing drop fuse on a pole - mounted transformer.
Step 1: Safety First
Before starting any installation work, safety should be your top priority. Make sure you are wearing appropriate personal protective equipment (PPE), including safety glasses, gloves, and a hard hat. Check the weather conditions; avoid installation during storms, high winds, or other adverse weather.
Shut off the power supply to the pole - mounted transformer. This can usually be done at the main switch or circuit breaker. Use a voltage tester to confirm that the power is indeed off. Mark the switch or breaker to prevent accidental re - energizing during the installation process.
Step 2: Gather Necessary Tools and Materials
You will need a variety of tools and materials for the installation. Here is a list of the basic items:

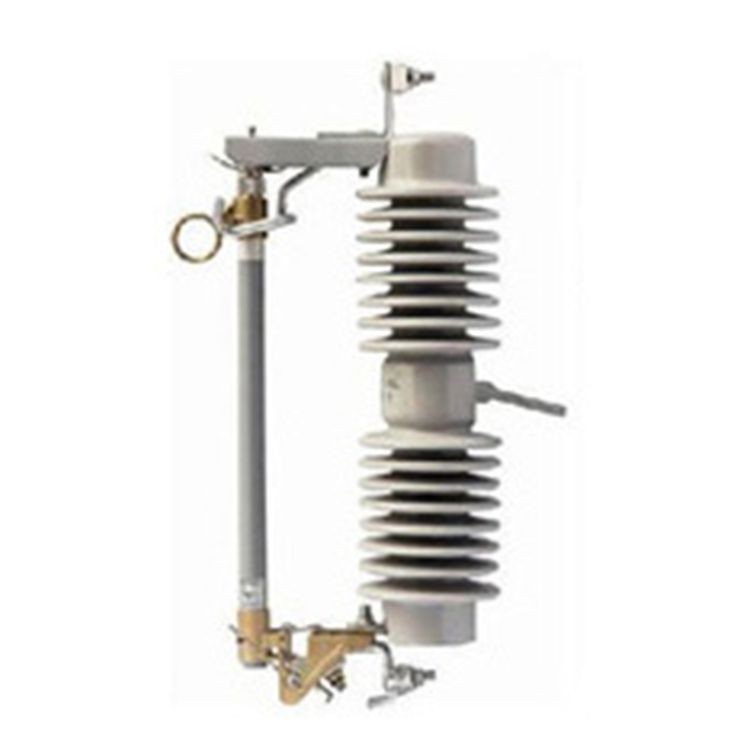

- Reclosing Drop Fuse: Ensure that you have the correct model and specifications for your pole - mounted transformer. Our company offers a wide range of Load Type Drop Fuse, Porcelain Base Fuse Cutout, and Silicone Rubber Drop Out Fuse to meet different requirements.
- Wrenches: Different sizes of wrenches will be needed to loosen and tighten bolts and nuts.
- Screwdrivers: Both flat - head and Phillips - head screwdrivers may be required.
- Ladder: A stable and appropriate - height ladder to reach the pole - mounted transformer.
- Insulated tools: To prevent electrical shock when handling live parts.
Step 3: Inspect the Transformer and Fuse
Thoroughly inspect the pole - mounted transformer for any signs of damage, such as cracks, leaks, or corrosion. Check the mounting brackets and hardware to ensure they are in good condition.
Inspect the reclosing drop fuse itself. Look for any visible damage to the fuse body, contacts, or insulators. Make sure all the components are intact and functioning properly. If you find any issues with the fuse or the transformer, contact a professional for further assessment and repair.
Step 4: Mount the Fuse Holder
Locate the appropriate mounting location on the pole - mounted transformer for the reclosing drop fuse holder. This is usually a pre - designed area on the side or top of the transformer.
Use the provided bolts and nuts to attach the fuse holder to the transformer. Make sure the holder is securely fastened and level. Tighten the bolts evenly to prevent any misalignment.
Step 5: Connect the Electrical Wires
Identify the incoming and outgoing electrical wires. The incoming wire is the power source, and the outgoing wire is connected to the load.
Strip the insulation from the ends of the wires to expose the bare conductors. The length of the exposed conductor should be appropriate for the fuse holder's terminals.
Insert the stripped ends of the wires into the corresponding terminals on the fuse holder. Use the appropriate tools to tighten the terminal screws firmly. Ensure that there is a good electrical connection and that the wires are not loose.
Step 6: Install the Fuse Cartridge
Open the fuse holder to access the fuse cartridge compartment. Take the reclosing drop fuse cartridge and carefully insert it into the holder. Make sure the cartridge is properly seated and aligned with the contacts.
Close the fuse holder securely. Some fuse holders may have a locking mechanism; ensure that it is engaged to prevent the fuse cartridge from accidentally falling out.
Step 7: Grounding
Proper grounding is crucial for the safety and proper functioning of the reclosing drop fuse. Locate the grounding terminal on the fuse holder or the transformer.
Connect a grounding wire to the grounding terminal. The grounding wire should be of an appropriate size and material, and it should be connected to a reliable grounding point, such as a grounding rod.
Step 8: Final Checks
After completing the installation, double - check all the connections. Make sure all bolts and nuts are tightened, and all electrical connections are secure.
Inspect the entire installation for any loose parts or signs of improper installation. Check the fuse holder for proper alignment and operation.
Step 9: Restore Power
Once you are confident that the installation is correct and safe, you can restore the power supply. Slowly turn on the main switch or circuit breaker.
Monitor the reclosing drop fuse and the pole - mounted transformer for a few minutes to ensure that everything is functioning properly. Check for any abnormal noises, sparks, or other signs of trouble.
Conclusion
Installing a reclosing drop fuse on a pole - mounted transformer is a task that requires careful planning, proper tools, and strict adherence to safety procedures. By following these steps, you can ensure a successful installation.
If you are in the market for high - quality reclosing drop fuses, we are here to help. Our company is a leading supplier of Load Type Drop Fuse, Porcelain Base Fuse Cutout, and Silicone Rubber Drop Out Fuse. We offer reliable products with excellent performance and after - sales service.
If you have any questions about our products or need assistance with installation, please feel free to contact us for further discussion and potential purchase. We look forward to working with you.
